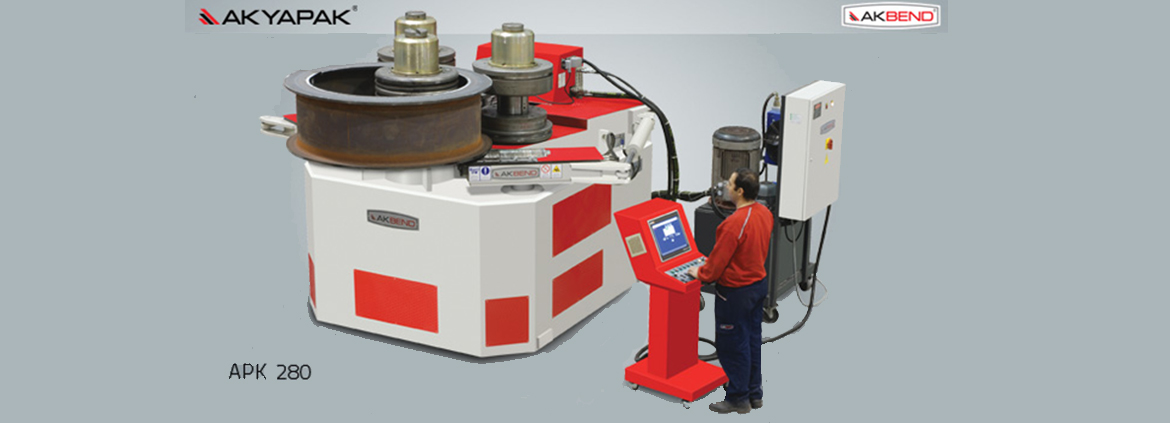

APK 280 Profile Bending Machine
Products Details
Standard Equipments
• Machine body is ST-52 steel construction• On APK 280-240 and APK 180 rolls are driven by a hydraulic motor + planetry gearbox. On APK 300 top and lower rolls are driven with two seperate planetrygearbox. On APK 550 rolls are driven via 3 seperate hydraulic motor.
• Variable speed of rotation on APK 180, 240, 280
• Special steel gears
• Shafts made of special steel, hardened and grounded
• Manual lubrication
• On APK 550, APK 300, APK 280, APK 240 and APK 180 guide rolls are hydraulic adjustable
• Lower rolls are hydraulic moveable up and down
• Digital display for lower rolls
• Seperate and moveable control panel
• Horizontal working
• 400 volt / 50 hz
• AKYAPAK Service assurance
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates
Optional Equipments
-
• Special rolls for tubes, profiles and angles
• Special tooling system for bending H, I, U profiles
• Spiral bending device
• Variable speed of rotation on APK 300, APK 360, APK 550
• Minimum speed mechanism for lower roll’s up and down move
• Extended shafts
• Digital display for hydraulic guide rolls
• NC Playback Control System
• CNC Graphic Control System
• Joystick control
