Product Details

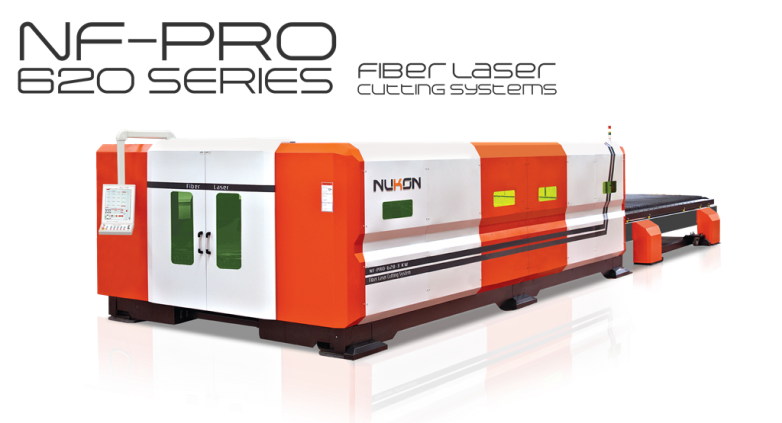

NF PRO Fiber Laser Cutting Machine

2, 3, 4, 5 and 6 kW laser power options.

NF PRO model is designed to answer all necessities about 2D laser cutting and ready for all kind of missions, starting from standard size and can be customized up to 30 m². First prototype of this model was produced in 2008 and thanks to its rigid structure, you can use it safely in difficult conditions.

Optionally, it can also be modified with automation units. )

You can maximize your efficiency and work 24/7.

Nozzle cleaning, automatic repeat, loading/loading-unloading system and more features.

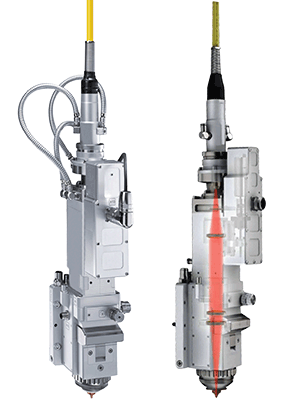

CUTTING HEAD

HIGH SENSITIVE DRIVER SYSTEM

Atlanta high precision helical gear rack and pinion system, precision planetary pinion system and servo - worm gear units are used.

Solid support and hardened ground gears of reducers are running with gap levels under 1 arc/min. Hardened and precision mounting surfaces are used in the racks of these systems.

DUST COLLECTION SYSTEM

Dust collection covers are opened and closed according to the position of the cutting head. At the same time, it ensures that there will be no exhaust fumes or smoke release into the working environment.

CUTTING TABLE

The shuttle table system is designed to increase workflow, to allow easy placement of material and to reduce time spent unloading parts. The shuttle table height is positioned with the help of four hydraulic cylinders. The cutting table is then lowered to aid in the loading and unloading process. The speed of the cutting tables can be adjusted according to the thickness of material.

ROBUST BODY STRUCTURE

A heavy body means less vibration and better durability. NUKON machine bodies are strengthened to minimize distortion and deformation. Solid steel frames are assembled and welded to achieve a heavy machine body. The machine body is then heat treated to prevent bowing and twisting. NUKON bodies are then machined with single point reference using 5 axis CNC machining centers. This single point referencing guarantees that all axis are parallel. Thus providing high accuracy and a long trouble free life for the machine.
