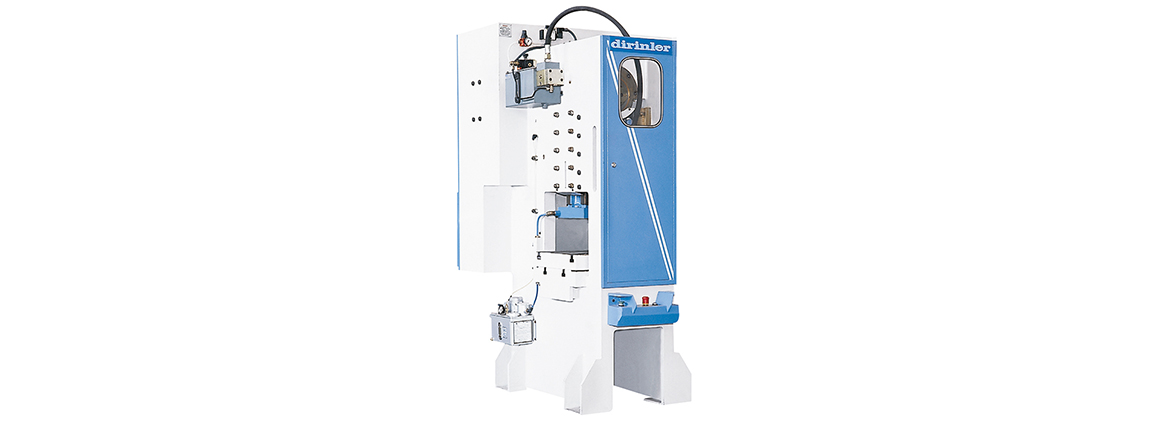

CDCS П81/L

TECHNICAL DATA		TYPE
TECHNICAL DATA		CDCS 251 P81/L	CDCS 401 P81/L	CDCS 601 P81/L	CDCS 801 P81/L	CDCS 1001 P81/L
Capacity	tons	25	40	60	80	100
Nominal tonnage height	mm	2,5	3	4	4	4
Max. closed mold height	mm	255	265	365	350	350
Stroke setup	mm	25	35	35	35	35
Strike number per minute	spm	100-290	150-300	100-270	100-270	100-270
Mold fitting seat diameter	mm	40	40	45	45	50
Neck depth	mm	245	240	270	255	255
Hammer size	mm	70	70	90	90	95
Hammer setup	mm	360x245	415x275	350x250	455x295	455x295
Table size	mm	560x400	630x450	750x500	860x540	860x540
Table hole diameter	mm	200	225	180	190	190
Height of the press	mm	2050	2040	2270	2370	2370
Depth of the press	mm	1855	1650	1920	2070	2070
Width of the press	mm	915	1000	1100	1100	1100
Motor power	kw	4	5,5	7,5	11	15
* Our right to change the sizes and models is reserved.
