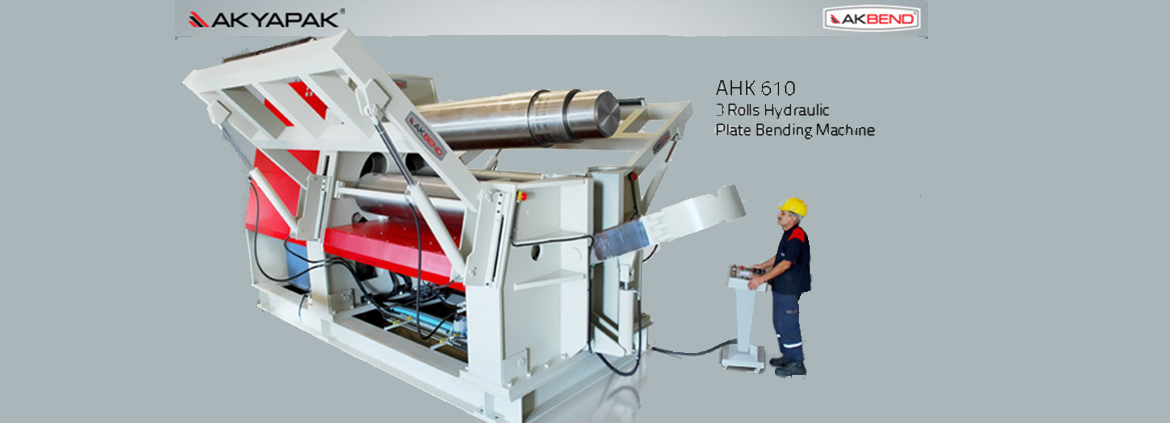

AHK 3 Rolls Hydraulic Plate Bending Machine

Three Rolls Hydraulic Plate Bending Machines produced by AKYAPAK AKBEND are able to bending 2 mm to 200 mm in thickness and width of 1000 mm 12000 mm sheet metal materials in high quality and in an easy way.

AHK Machines have extremely strong bodies in view of welded St-52 steel construction body, roll shaft diameters and materials, bearing used and bending moment are produced with NC and CNC options as control panel systems.

Three rolls are driven with three separate hydraulic motor and / or reducer (rolls ø 230 mm. machine and its top). All the rolls of our hydraulic plate bending machines produced by AKYAPAK AKBEND are embedded with self-aligning roller bearing. In this way, by being reduced of the friction force, the machine is strengthened more.

It is offered various options to facilitate the process of bending of three rolls hydraulic
plate bending machines.

These are;

• Infinitely adjustable variable speed of rotation
• Side and central supporters for big sheet metal diameters
• Extended spindles
• Profile of rolls
• Material feed table
• Oil cooling system

Standard Equipments

• Cone bending device.
• Induction hardened rolls.
• Digital display for both side rollers.
• Machine body is steel (St-52) construction.
• Separate control panel.
• All rollers mounted in bearing.
• Drop end controlled from control panel in order to release easily bent metal sheet and lifted upper rolls.
• Movement and parallelism adjustment of the rollers controlled from panel.
• All rolls are driven with hydraulic motor and plonetry gear box.
• Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates
