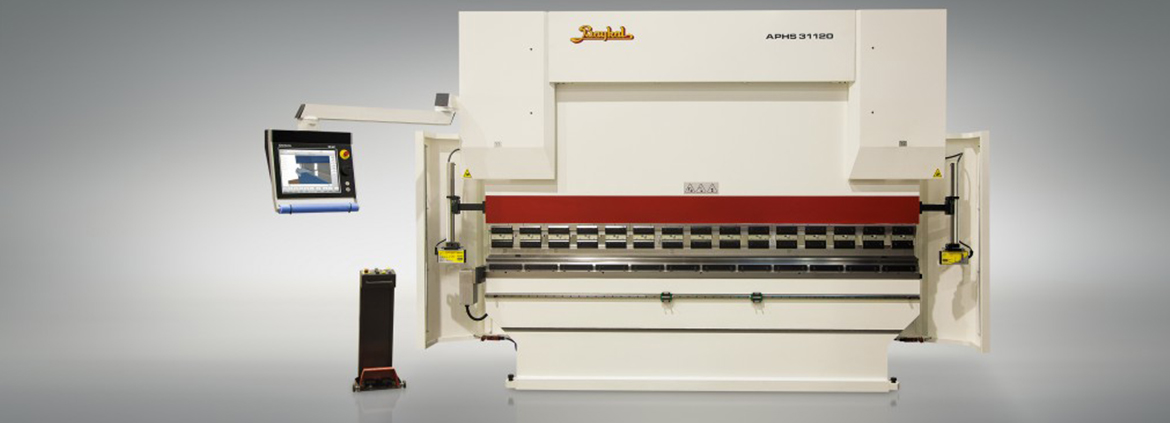

APHS: Improved ergonomics, reliable processes and high quality.
APHS, which is designed with a superior experience of Baykal Machinery for 20 years in press brake manufacturing, will be the most important profit factor of your company. It minimizes your unit time costs with its speedy, sensitive, quality and superior bending ability.
Thanks to its monoblock welded body structure with static and dynamic rigidity, it provides a long operating life. APHS press brake converts your most sensitive works into perfect with reliable processes.
CNC SYSTEM
Graphical control with full programming and machine control facilities in a user-friendly computer environment. Main features include:
Programmable multi-axis control.
Y1-Y2 cylinder axes.
X1-X2-R1-R2-Z1-Z2 backgauge axes.
CNC crowning axis.
Modular expansion for additional axes.
High memory capacity for program steps and tooling data .
High number of product and bend repeat possibility .
Direct graphical programming with automatic computation of all axis positions and bend sequence in full graphic simulation .
Product programming with direct angle input or in absolute dimensions. For each CNC program and bend sequence, the programmable and/or computed functions include: bending length/thickness, material selection, tooling selection, bend method, mute position, pinching point, pres force/speed, incremental travel and retraction of backgauge,dwell time, delay time for axes re-positioning, decompression stroke/speed, tilt adjustment, cgorrections on Y and X axes.
Manual operation of all axes.
Teach-in on all axes.
Operator selectable languages.
Integrated diagnostic software.
Memory storage on USB flashdisk.
