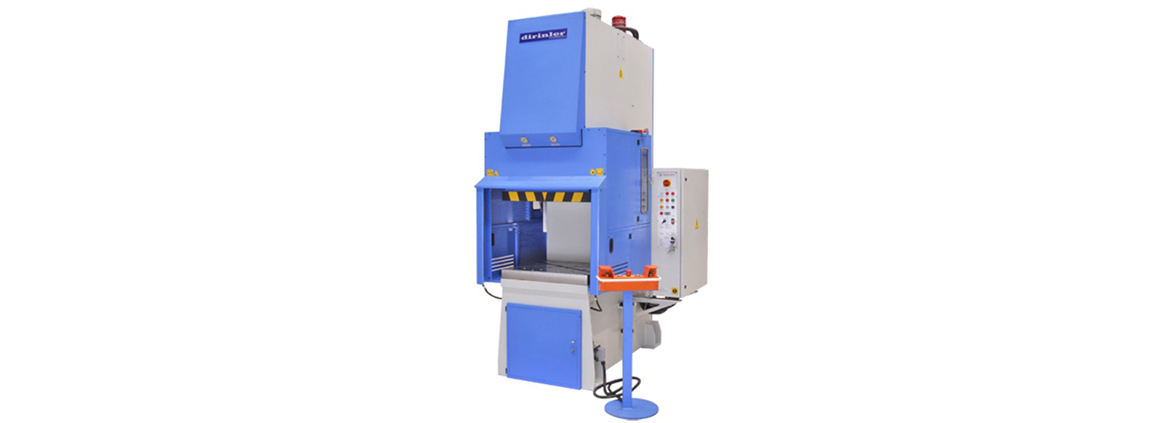

CDCH SERIES

TECHNICAL DATA		TYPE
TECHNICAL DATA		CDHC 630-400-250	CDHC 1000-400-400	CDHC 1600-400-630
Capacity	tons	63	100	160
Bottom remover capacity	tons	25	40	63
Strok	mm	400	400	400
Bottom remover stroke	mm	150	150	150
Table size	mm	750x625	850x640	1000x750
Max. distance between tables	mm	630	685	765
Hammer size	mm	750x570	850x630	1000x680
Fast approach speed	mm/sn	300	250	250
Pressing speed	mm/sn	25	20	20
Return speed	mm/sn	300	250	250
Presin genişliği	mm	1275	1400	1360
Width of the press	mm	3000	3350	3800
Height of the press	mm	1680	1700	2100
Motor power	kw	7,5	11	22
* Our right to change the sizes and models is preserved.
