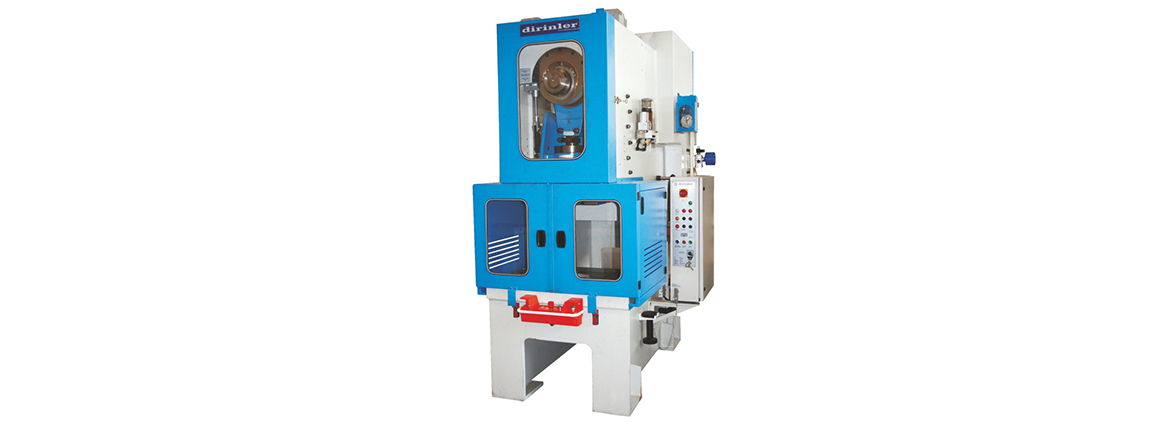

CDCS-P

TECHNICAL DATA		TYPE
TECHNICAL DATA		CDCS 251 P	CDCS 401 P	CDCS 600 P	CDCS 800 P	CDCS 1250 P	CDCS 1500 P	CDCS 2500 P
Capacity	tons	25	40	60	80	125	150	250
Nominal tonnage height	mm	2,5	4	4,5	4,5	6	6	6
Max. closed mold height	mm	285	280	360	400	450	500	500
Stroke setup	mm	10/65	5/75	4/102	4/102	5/110	5/110	4/140
Strike number per minute	spm	150	150	54	54	51	51	43
Mold fitting seat diameter	mm	35	40	45	45	50	50	65
Neck depth	mm	230	230	245	255	300	365	435
Hammer setup	mm	80	65	90	90	90	95	100
Hammer size	mm	275x185	360x225	425x250	460x300	500x350	500x350	785x600
Table size	mm	560x400	630x450	750x500	860x540	900x640	1000x700	1250x850
Table hole diameter	mm	160	160	170	180	200	210	240
Height of the press	mm	2065	2050	2270	2365	2575	2670	3700
Depth of the press	mm	1700	1700	1850	2010	2345	2450	2600
Width of the press	mm	925	1100	1100	1100	1300	1300	1550
Motor power	kw	4	4	7,5	7,5	11	11	18,5
* Our right to change the sizes and models is preserved.
