CFDD Hydraulic Double Action C Frame Presses

Home/Products/CFDD Hydraulic Double Action C Frame Presses

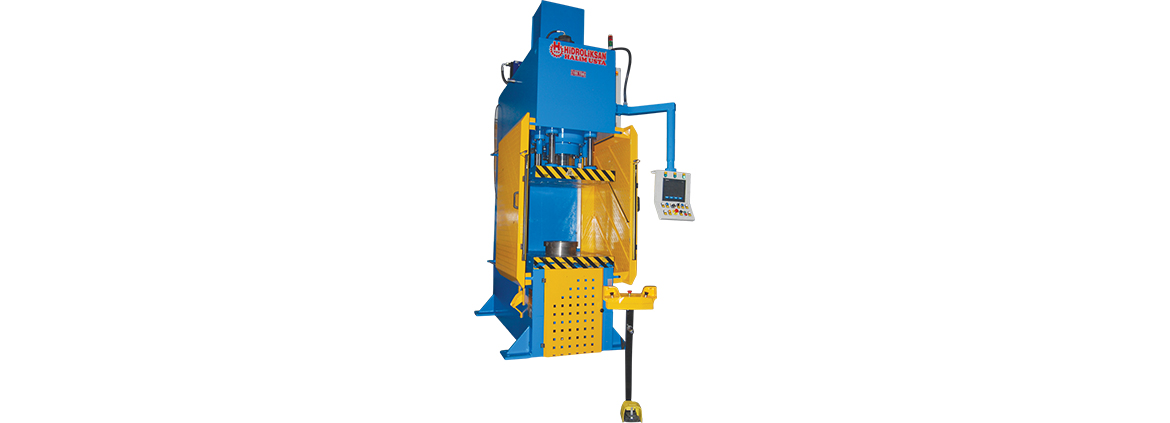

CFDD Hidrolik C Tipi Sıvama Presler CFDD150

Product Details

Hidroliksan C Frame presses produced up to 500 ton,are standart type presses as well as can be produced according to customer purpose. C Frame preses are using for bending, punching, cutting and straigtening according to using tools. Fastening and removing of the tools can be made easly so that 3 sides of press is open. C Frame presses which have using options as manual and automatic, are preffered moslty users who, they are working with small tools.

Standard Equipments:

  • Chrome Plated Cylinder
  • User Manual
  • Steel Welded Frame
  • Automatic Control Unit
  • Saferty cover and Light Barrier
  • Two Hand Button Control
  • Oil Pressure Gauge
  • Pressure Adjustment
  • T-Slotted Table
  • 1 Year Warranty

    • Optional Equipments

  • Tool
  • Ejector Cylinder
  • Speed Adjustment
  • NC control
    • Model CFDD / 150
    Kapasite (ton) 150
    Masa Ölçüsü 800x600
    Strok (mm) 400
    İş alma boyu (mm) 500
    Motor Gücü (kW) 45
    Pompa (lt) 440
    İniş Hızı (mm/s) 131
    Dönüş Hızı (mm/s)

    123
    Çalışma Hızı (mm/s)

    10
    Pot (Standart ve opsiyonel)
    Kapasite (ton)

    50
    Strok (mm)

    150
    İniş Hızı (mm/s)

    39
    Dönüş Hızı (mm/s)

    47
    Uzunluk (mm)

    1600
    Genişlik (mm)

    1100
    Yükseklik (mm)

    3200
    Ağırlık (kg.) 11000
