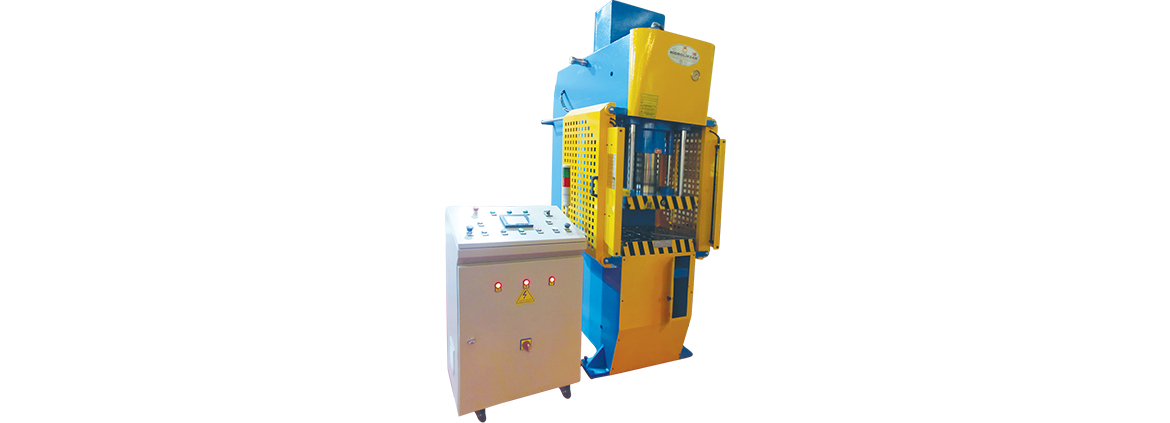

CFDD Hydraulic Double Action C Frame Presses CFDD30

Home/Products/CFDD Hydraulic Double Action C Frame Presses CFDD30
CFDD Hidrolik C Tipi Sıvama Presler CFDD30

Product Details

As the name suggets, this press for making deep drawing such as kitcheen tools and basel of wheel barrow, boiler, lid, bottled gas (tube industry)... etc. Hidroliksan deep drawing presses can be produced up to 3000 Ton in any size and are manufactured with many options as indicated in specifications.

Standard Equipments:

  • Chrome Plated Cylinder
  • User Manual
  • Steel Welded Frame
  • Automatic Control Unit
  • Saferty cover and Light Barrier
  • Two Hand Button Control
  • Oil Pressure Gauge
  • Pressure Adjustment
  • T-Slotted Table
  • 1 Year Warranty

    • Optional Equipments

  • Tool
  • Ejector Cylinder
  • Speed Adjustment
  • NC control
    • Model CFDD / 30
    Kapasite (ton) 30
    Masa Ölçüsü 500x500
    Strok (mm) 400
    İş alma boyu (mm) 500
    Motor Gücü (kW) 15
    Pompa (lt) 230
    İniş Hızı (mm/s) 100
    Dönüş Hızı (mm/s)

    100
    Çalışma Hızı (mm/s)

     12.5
    Pot (Standart ve opsiyonel)
    Kapasite (ton)

    10
    Strok (mm)

    150
    İniş Hızı (mm/s)

    58
    Dönüş Hızı (mm/s)

    30
    Uzunluk (mm)

    1000
    Genişlik (mm)

    1000
    Yükseklik (mm)

    2300
    Ağırlık (kg.) 2000
