Eco Fiber Laser

Home/Products/Eco Fiber Laser
Eco Fiber Lazer

Product Details

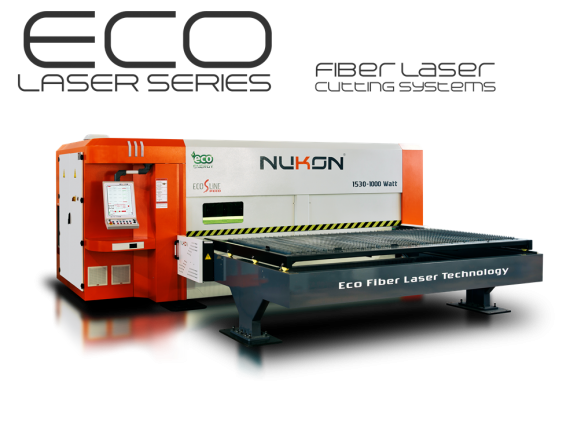

ECO Fiber Laser Cutting Machine
  • 1530mm x 3050mm dual modifiable shuttle table.
  • 1, 2 and 3kW laser power options.

  • ECO model is convenient for companies with limited working space. With its small area coverage, ECO is our most suitable machine with low management costs for companies who have limited budget.
  • Sheet loading system.
    • odaklama varmak makina

    HIGH SENSITIVE DRIVER SYSTEM

  • Atlanta high precision helical gear rack and pinion system, precision planetary pinion system and servo - worm gear units are used.
  • Solid support and hardened ground gears of reducers are running with gap levels under 1 arc/min. Hardened and precision mounting surfaces are used in the racks of these systems.

    • ROBUST BODY STRUCTURE

  • A heavy body means less vibration and better durability. NUKON machine bodies are strengthened to minimize distortion and deformation. Solid steel frames are assembled and welded to achieve a heavy machine body. The machine body is then heat treated to prevent bowing and twisting. NUKON bodies are then machined with single point reference using 5 axis CNC machining centers. This single point referencing guarantees that all axis are parallel. Thus providing high accuracy and a long trouble free life for the machine.

    • AUTO DETECTION

  • The angle of the plate and its corner are found automatically by using 3-point detection method on the plate.
