Products Details

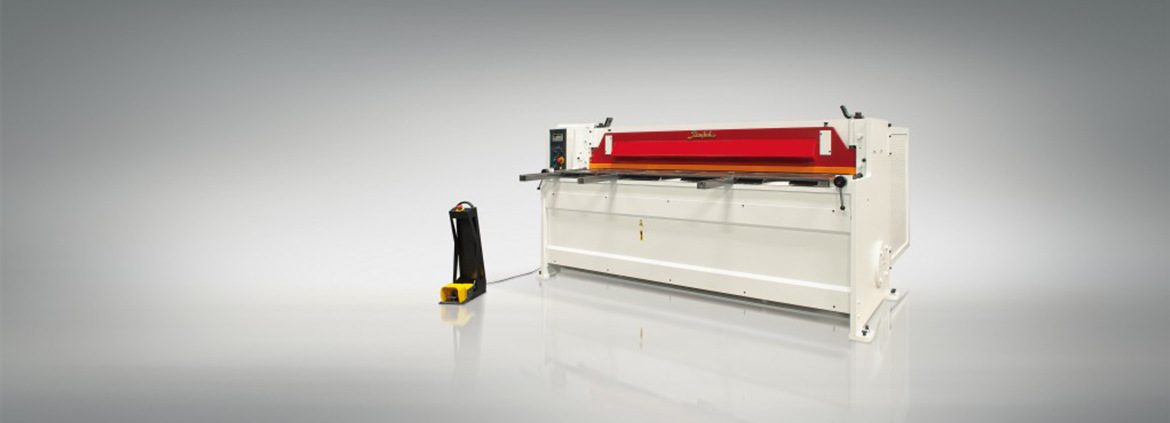

RGS: Your economical solution.

Thanks to its ergonomic design and long-life rigid structure, it provides dynamic and extremity sensitive prolificacy. It contributes to your budget with its low business investment.

  • All steel-plate, welded construction provided with static and dynamic frame rigidity.
  • Rigid cutting beam working inside roller bearings and bronze guides.
  • Precise blade adjustment from top beam.
  • Mechanical sheet clamping system.
  • Easily-adjusted blade-gap system working on slides.
  • Worm gear system providing noise-free operation.
  • Low-maintenance clutch system.
  • Front gauging and supports for cutting wide sheets.
  • STANDART EQUIPMENT

  • Shear blades from tough and wear-resistant alloyed material machined with four cutting edges (bottom blade) and two cutting edges. (top blade)
  • Foot pedal suitable for both single and repetitive cutting.
  • 1000 mm squaring arm with scale.
  • Front support arms and front gauge.
  • 600 mm manuel backgauge system working in ballscrews with ± 0.5 mm precision.
  • Protective front and rear cover plates.
